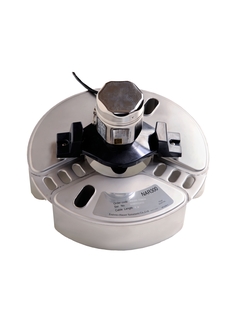

Détecteur de fuite d'huile
Capteur à flotteur NAR300
Détection des fuites de produits pétrochimiques, huiles végétales, etc.
Installé dans un puisard de drainage à proximité d'un parc de stockage ou de pompage, le système NAR300 permet une excellente détection des fuites de produits pétrochimiques, huiles végétales, etc. Les technologies vibronique et conductive sont combinées avec une logique à 2 niveaux pour une surveillance simple, sûre et extrêmement fiable des fuites.
-
Avantages
Deux capteurs indépendants sont combinés pour une détection précise des fuites de liquide
Une sonde conductive détecte les liquides aqueux ou non aqueux
Une fourche vibrante détecte l'huile ou l'air
Pas de pièces mobiles, longue durée de vie, coûts de...
-
Domaine d'application
Température ambiante : -20 à +60 °C (-4 à +140 °F)
Documents / Manuels / Logiciels
-
Oil Leak Detector NAR300 System High Temperature - Technical
Information
This system is designed to be installed in a pit within an oil retaining dike, a plant, or a sump pit near a pump yard, where it can provide the ultimate in leak detection function for oil, petrochemicals or vegetable oils. The Oil Leak Detector NAR300 Systemfor high temperature utilizes detection function, conductive, to monitor the condition. This NAR300 system for high temperatureissuitable for a pit using steam draining conduit for anti-freezing and high temperatures (≤100°C). The accurate and minimal equipment configuration ensures safe operation of tank yard.
Information technique (TI) -
Technical Information - Oil Leak Detector NAR300 System
This system is designed to be installed in a pit within an oil retaining dike, a plant, or a sump pit near a pump yard, where it can provide the ultimate in leak detection function for oil, petrochemicals or vegetable oils. The oil leak detector NAR300 systemutilizes two separate detection functions, a conduction sensor and a tuning fork sensor, to monitor conditions. Highly accuratealarm recognition is attained through a 2-stage logic process, which ensures safe tank yard operation, with minimal equipment configuration.
Information technique (TI) -
Oil Leak Detector NAR300 System High Temperature - Operating
Instruction
This system is designed to be installed in a pit within an oil retaining dike, a plant, or a sump pit near a pump yard, where it can provide the ultimate in leak detection function for oil, petrochemicals or vegetable oils. The Oil Leak Detector NAR300 System for high temperature utilizes detection function, conductive, to monitor the condition. This NAR300 system for high temperatureis suitable for a pit using steam draining conduit for anti-freezing and high temperatures (≤100°C). The accurate and minimal equipment configuration ensures safe operation of tank yard.
Mise en service (BA) -
NAR300 system - Operating Instruction
Tank Gauging
Mise en service (BA) -
Oil leak detector NAR300 System - Operating Instructions
This system is designed to be installed in a pit within an oil retaining dike, a plant, or a sump pit near a pump yard, where it can provide the ultimate in leak detection function for oil, petrochemicals or vegetable oils.
Mise en service (BA) -
NAR300 system - Operating Instruction
Tank Gauging
Mise en service (BA) -
Safety Instruction for NAR300 (ZB; 9001/01-280-85); FM
Applicable from orders after 1st Oct. 2018.
Safety Instruction for NAR300 (ZB; 9001/01-280-85); FM Applicable from orders after 1st Oct. 2018.
Conseils de sécurité ATEX (XA) -
Safety Instructions
NAR300
FM
Conseils de sécurité ATEX (XA) -
Oil Leak Detector NAR300 System - Safety Instructions
Oil Leak Detector NAR300 System TIIS Ex ia IIB T4
Conseils de sécurité ATEX (XA) -
Converter NRR261 for Oil Leak Detector - Safety Instructions
Converter NRR261 for Oil Leak Detector TIIS Ex d[ia] IIB T4
Conseils de sécurité ATEX (XA) -
Safety Instruction for NAR300 (ZB; 9001/01-280-85); ATEX/IECEx
Applicable from orders after 1st Oct. 2018.
Safety Instruction for NAR300 (ZB; 9001/01-280-85); ATEX/IECEx Applicable from orders after 1st Oct. 2018.
Conseils de sécurité ATEX (XA) -
Converter NRR262 for Oil Leak Detector - Safety Instructions
Converter NRR262 for Oil Leak Detector TIIS Ex ia IIB T4
Conseils de sécurité ATEX (XA) -
Safety Instruction
NAR300
ATEX/IECEx
Conseils de sécurité ATEX (XA) -
Functional Safety Manual Oil Leak Detector
This system is designed to be installed in a pit, dike, plant, or sump pit near a pump yard, where it can provide the ultimate inleak detection function for petrochemicals or vegetable oils.
Information spécifique (SD) -
Tank Gauging
Система коммерческого и оперативного учета продуктов в резервуарных парках.
Information spécifique (CP)07/15Russe -
Overfill prevention and leak detection in chemical storage vessels
Overfill prevention and leak detection in chemical storage vessels. Companies setting up a spill prevention, control, and countermeasure plan often need to update their instrumentation.
Etudes de cas (CS)12/17Anglais -
NAR300 - Picture
Tank gauging
Photo10/07Anglais , Japonais -
Sakura
Code produit: NAR300- Numéro de déclaration: HE_00269_01.16 Spécifications du fabricant: Explosion protection, EMC
Manufacturer DeclarationAnglais -
Sakura
Code produit: NAR300- Numéro de déclaration: HE_00270_01.16 Spécifications du fabricant: Performance characteristics
Manufacturer DeclarationAnglais -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Numéro de déclaration: EC_00541_01.17
EU DeclarationAllemand , Anglais , Français -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Numéro de déclaration: EC_00541_02.17
EU DeclarationAllemand , Anglais , Français -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Région/Pays: Europe (ATEX) Organisme d\'accréditation: FM Catégorie: II 2 G, II 1/2 G Protection: [Ex ia] IIB Txxx°C Gb, Ex d [ia] IIB T4 Ga/Gb, Ex ia IIB T4 Ga/Gb
Explosion ProtectionAnglais -
Sakura, SYSTEM
Code produit: NAR300- Organisme d\'accréditation: TIIS Protection: Ex ia IIB T4
Explosion ProtectionJaponais -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Région/Pays: USA Organisme d\'accréditation: FM Catégorie: I/1/C,D,E,F,G/T5, I/zone 0 Protection: AIS, IS, XP/AIS, AEx [ia] IIB Txxx°C, AEx d [ia] IIB T4 Ga/Gb, AEx ia IIB T5 Ga
Explosion ProtectionAnglais -
Sakura, System&Gauging
Code produit: NAR300- Organisme d\'accréditation: TIIS Catégorie: LEAKAGE DETECTION SYSTEM Protection: Ex ia IIB T4
Explosion ProtectionJaponais -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Région/Pays: Europe (ATEX) Organisme d\'accréditation: FM Catégorie: II 2 G, II 1/2 G Protection: [Ex ia] IIB Txxx°C Gb, Ex d [ia] IIB T4 Ga/Gb, Ex ia IIB T4 Ga/Gb
Explosion ProtectionAnglais -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Région/Pays: International (IECEx) Organisme d\'accréditation: IECEx Protection: Ex d [ia] IIB T4 Ga/Gb
Explosion ProtectionAnglais -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Région/Pays: Europe (ATEX) Organisme d\'accréditation: FM Catégorie: II 2 G, II 1/2 G Protection: [Ex ia] IIB Txxx°C Gb, Ex d [ia] IIB T4 Ga/Gb, Ex ia IIB T4 Ga/Gb
Explosion ProtectionAnglais -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Région/Pays: USA Organisme d\'accréditation: FM Catégorie: I/1/C,D,E,F,G/T5, I/zone 0 Protection: AIS, IS, XP/AIS, AEx [ia] IIB Txxx°C, AEx d [ia] IIB T4 Ga/Gb, AEx ia IIB T5 Ga
Explosion ProtectionAnglais -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Région/Pays: International (IECEx) Organisme d\'accréditation: IECEx Protection: Ex d [ia] IIB T4 Ga/Gb
Explosion ProtectionAnglais -
Sakura
Code produit: NAR300-, NRR261-, NRR262- Région/Pays: International Organisme d\'accréditation: TÜV
Safety Integrity Level (SIL)Anglais
Accessoires / pièces de rechange
-
-
Nr 21 Order code 56004365
-
-
-
Nr 75 Order code 71137732
-
-
-
Nr 31 Order code 56004438
-
Nr 31 Order code 71276647
NAR300 capt. I/F assemblag,FM/ATEX/IECEx
-
-
-
Nr 21 Order code 56004306
-
-
-
Nr 11 Order code 017880-5026
O-ring, terminal box, small, CR
Size: D100mm, d3mm. Material: CR (Chloroprene Rubber). Part: terminal box, small. Usage: AT1/AT500, DRM9700, DU, NRR261/NRR263, NMT539 Converter, TGM5.
-
