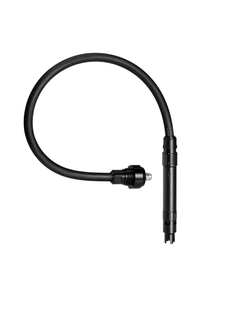

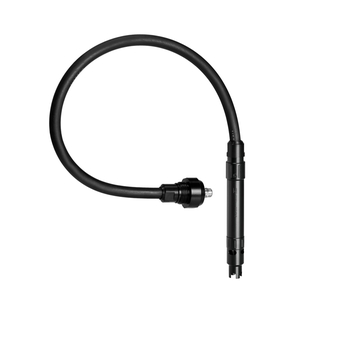

Dipfit CYA10 is a flexible submersible assembly for sensor immersion in auxiliary industrial processes, water and wastewater applications. It allows easy and flexible installation even in hazardous areas up to 10 meters immersion depth. Furthermore, provides shock and impact protection of the installed sensor and strain relief of the installed cable. The immersion assembly is compatible to all 12mm Memosens sensors with 120mm shaft length and without KCl supply.
CYA10 is a submersible assembly with an immersion depth of 10m for
Surface water monitoring in groundwater wells, rivers, and for brackish-/ seawater
Municipal and industrial wastewater treatment
Industrial utilities
Dipfit CYA10 is compatible with all digital 12mm Memosens sensors without liquid KCl supply and the following parameters
pH/ORP
Conductivity
Oxygen
Benefits
Easy installation into well shaft, rivers and basins due to different installation possibilities (fixed with flange conncection or in combination with Flexdip CYH112)
Time-saving maintenance of the measuring point thanks to the flexible hose design and easy accessibility of the sensor used, even when the assembly is installed with a long immersion depth
Simple realization of measuring points for PG13,5 Sensors (“12 mm”) due to the space-saving design for easy installation in channels, basins, sewers or manholes
Great flexibility in applications due to realization of measuring points in sewers and covered treatment basins thanks to its suitability for hazardous areas
